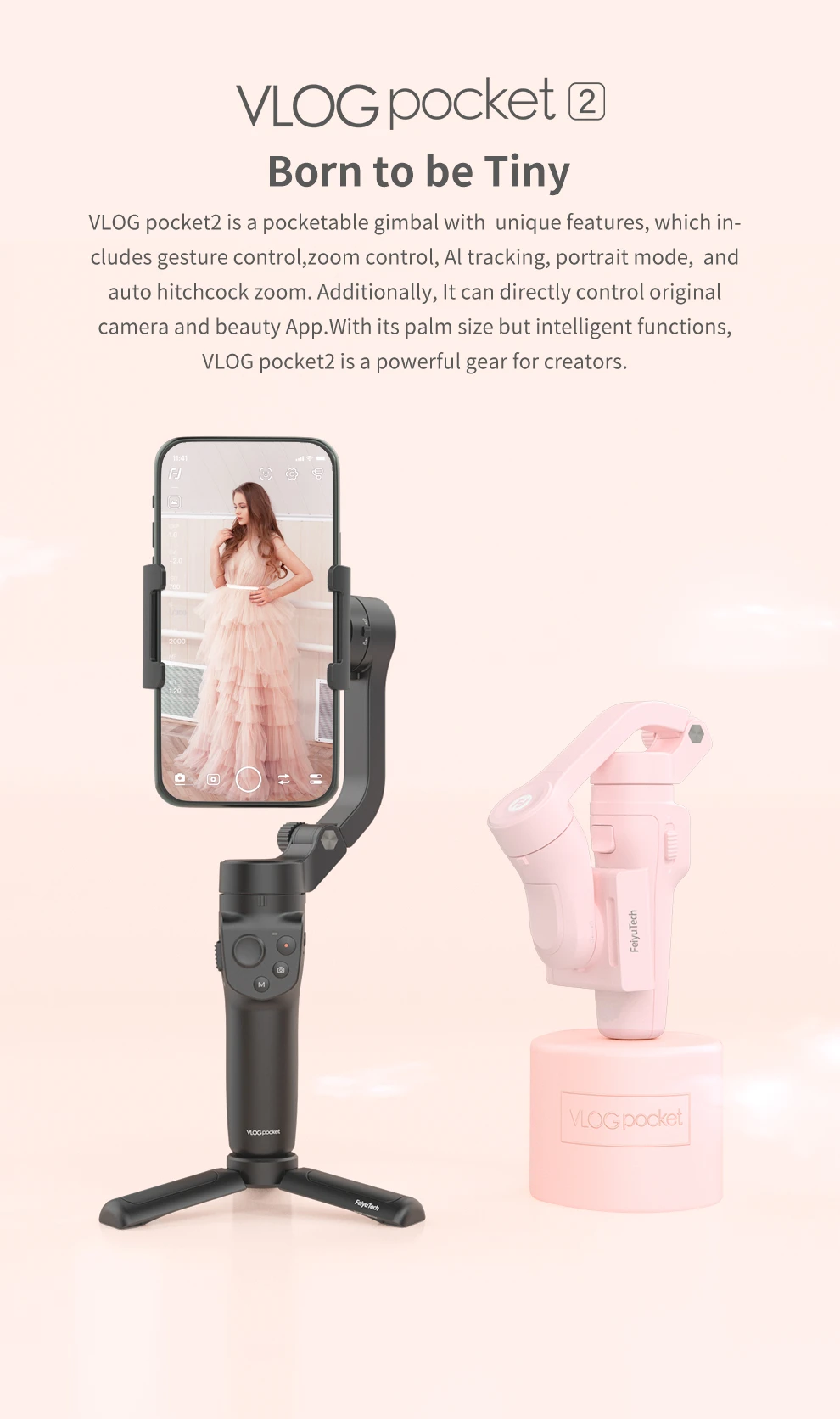

Zoom Original Camera App Control Foldable Smartphone Gimbal Stabilizer

Adaptive Device: Android/IOS Smart Phone
Adaptive Size: 41mm-89mm (About 6.6inch)

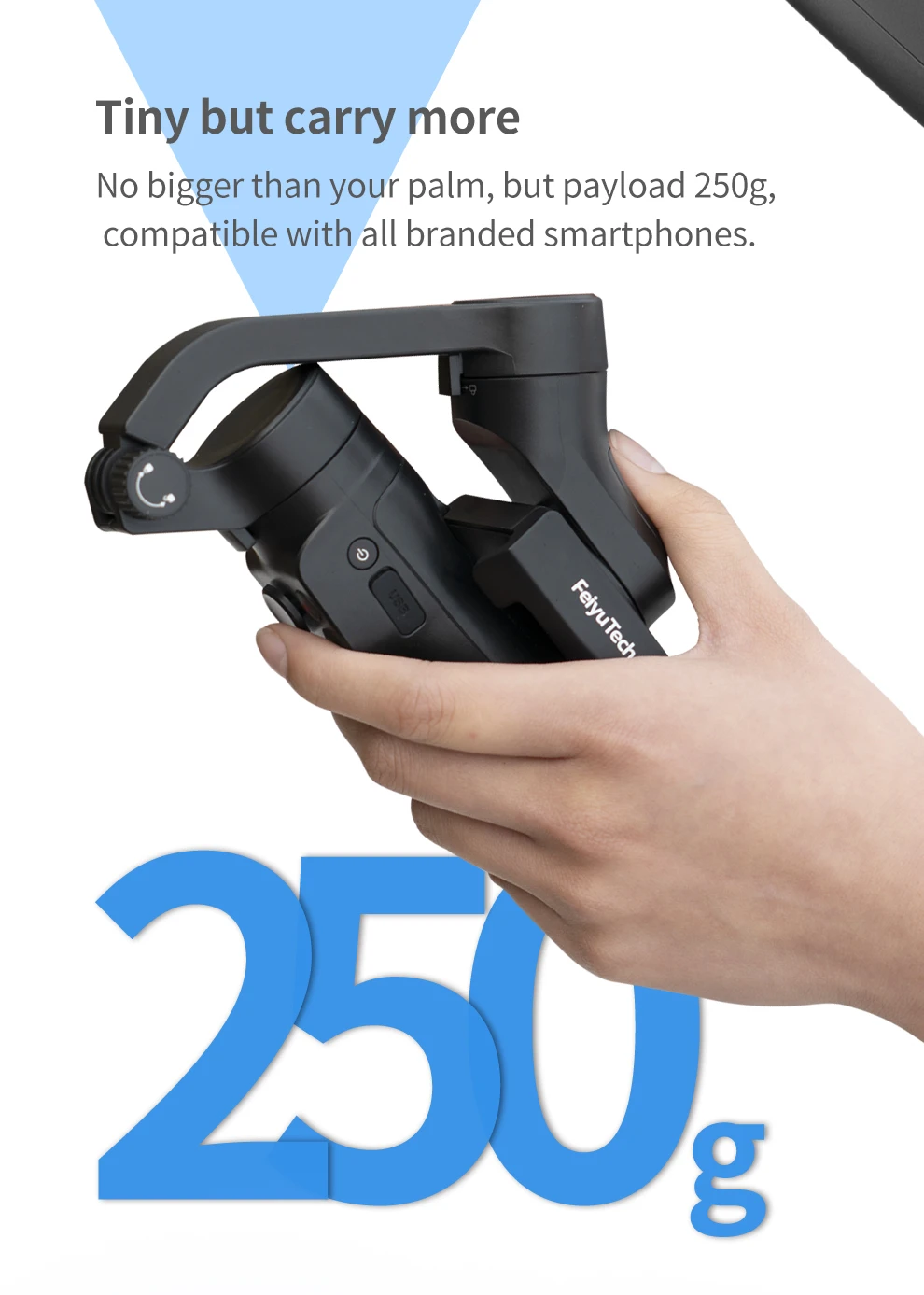

Max PayLoad: 0.55lbs(250g)

• Overview
• Specifications

•























•

  Battery	7.4 V, 1300MAH, 9.62 Wh, Built-in rechargeable battery 1 Pcs. The gimbal can be charged by Type-C port on the handle while using.

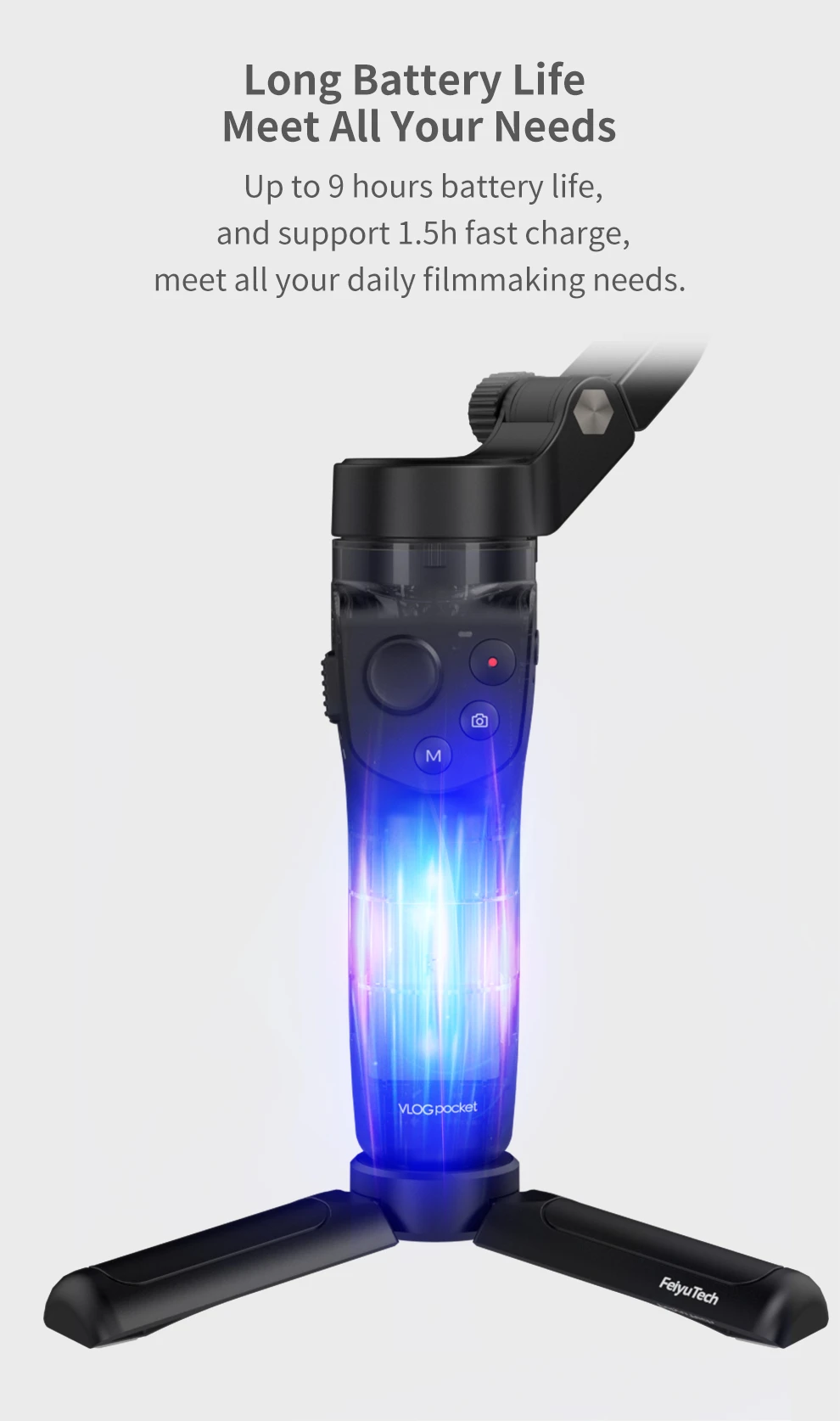

  Battery Life	9h（when the load is 150g）
  Charging Time	≥ 1.5h,we advise using 5V/2A adapter. (Forbid to use fast charging adapter) The indicator light is red when charging, and green when fully charged.

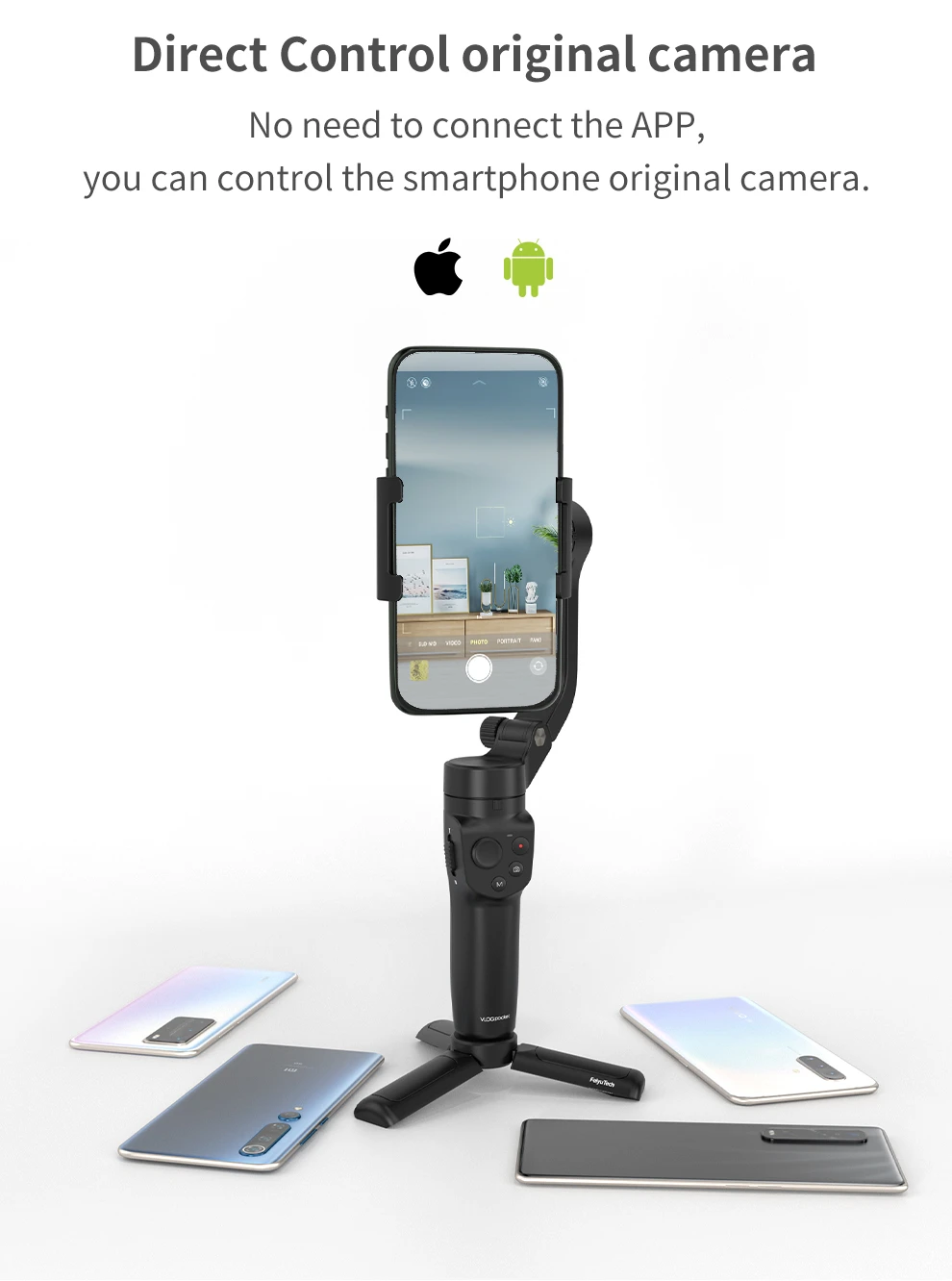

  Controlling Smartphone	The gimbal can directly control photo/video on smartphone original camera, at the same time, zoom, AI Tracking and other functions on Feiyu ON APP by Bluetooth connection.
  Material	PC, PA6 and other high-strength and high-temperature resistant materials. The temperature is in the range of -45 ° ~ 135 °. The material has high strength material characteristics
  Colors	Midnight black & Dreamy pink
  Bluetooth	Bluetooth BT5.0
  Rotatable Range	Tilt Range：165° Roll Range：323° Pan Range：330°

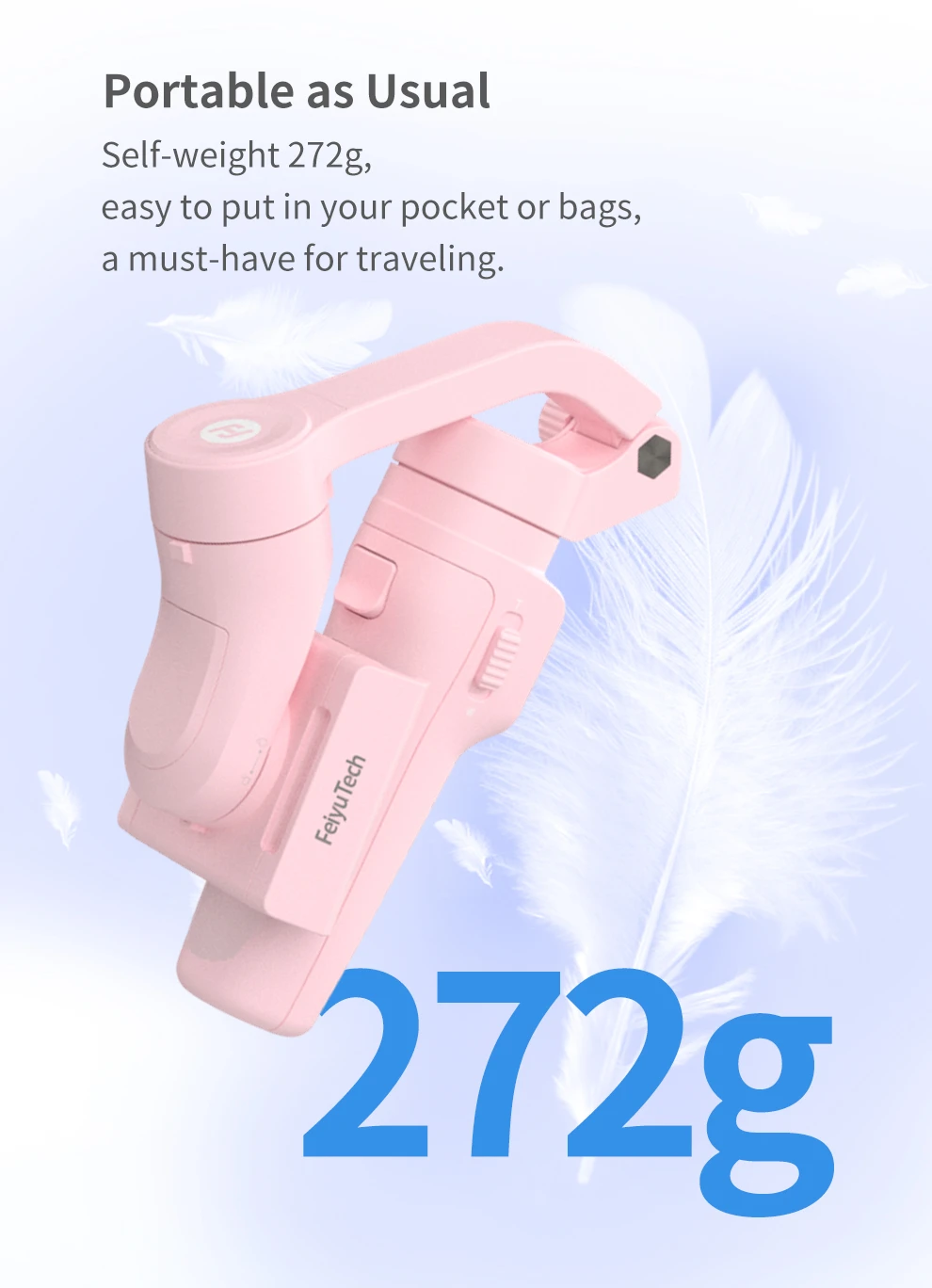

  Weight	272g（not including smartphone）
  Extensible Port	1/4 inch screw hole on the bottom
  Standard Accessories	Type-C Cable*1（for charging）、Mini Tripod*1,Portable bag*1
  Optional Accessories	Adjustable extension rod(with 1/4 inch screw), universal tripod(1/4 inch screw hole)

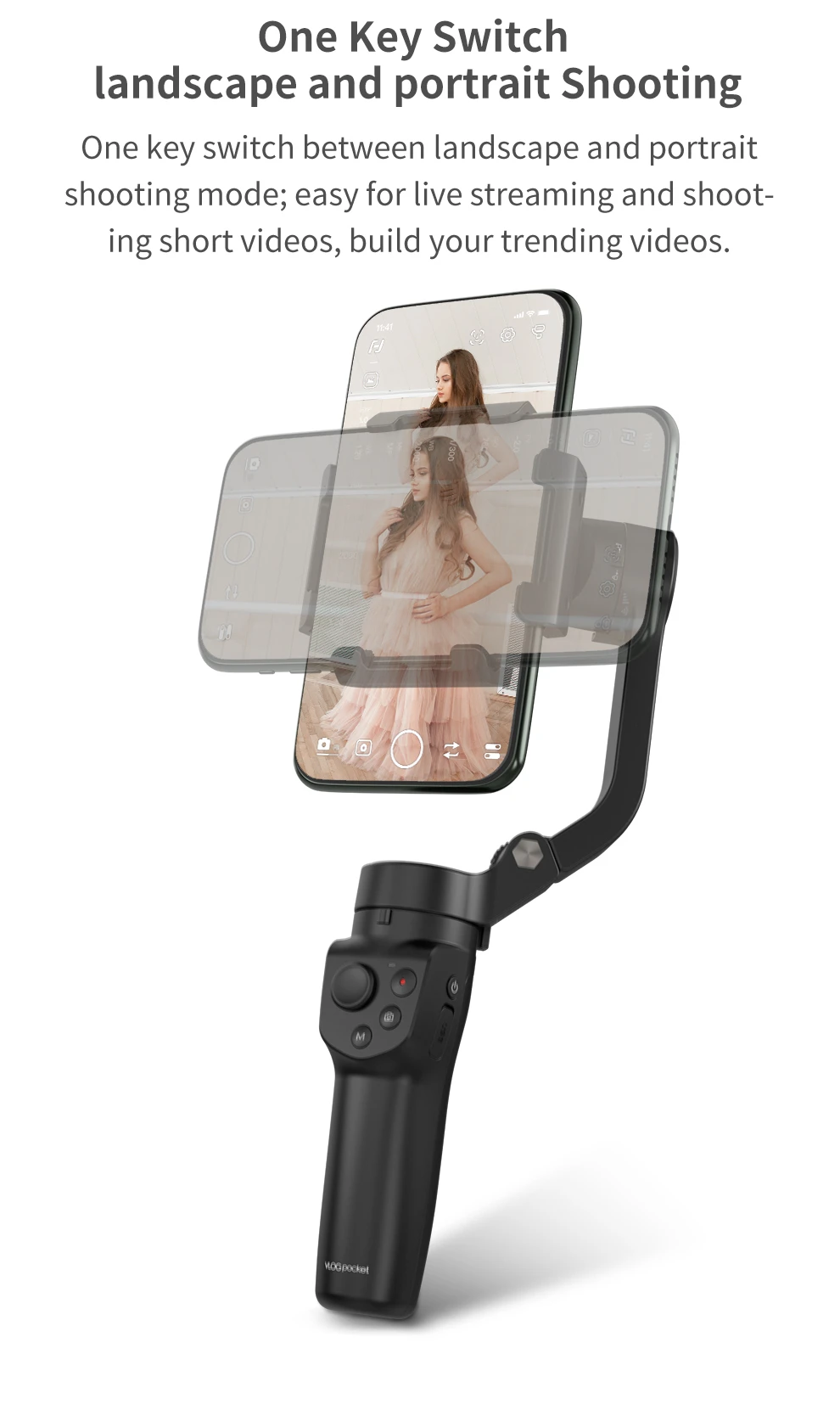

  Landscape Switching	Hold the gimbal normally and turn the handle left or right to invert. The roll axis will rotate automatically to avoid that the lens is blocked. The inverted holding can be used for low angle shooting. Before operating, we advise double-tapping the trigger button to recenter the gimbal.

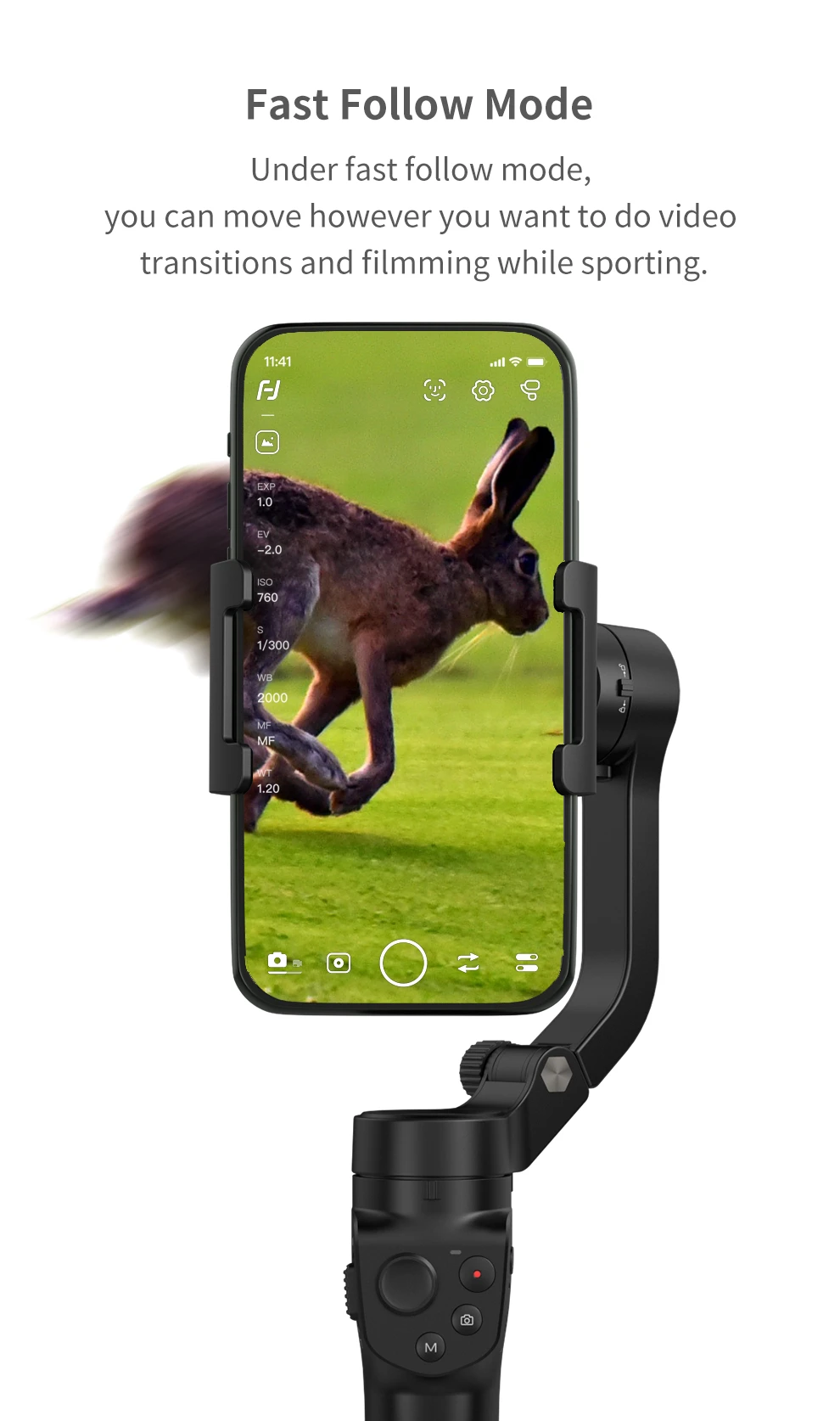

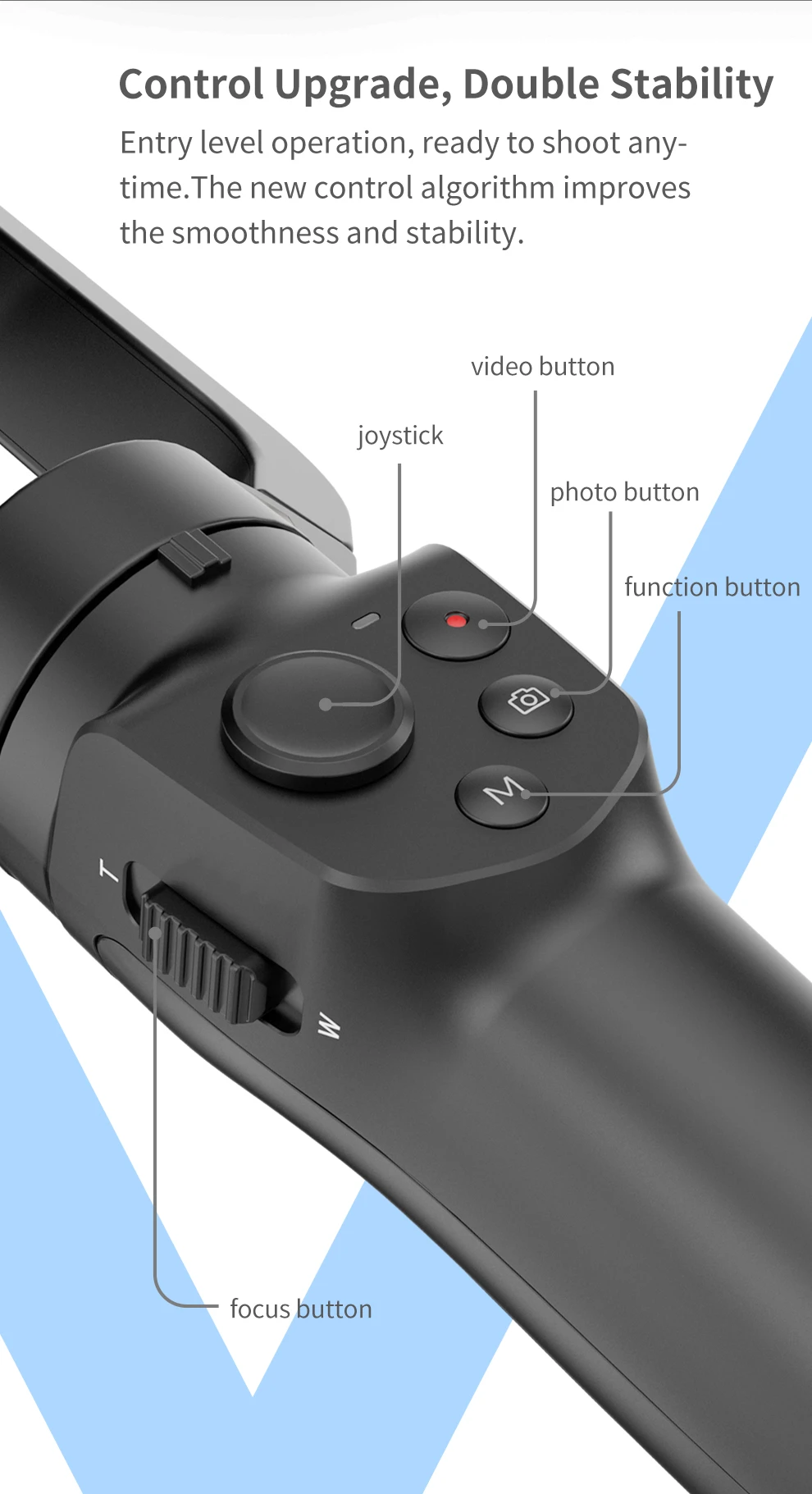

  Function Mode & Button Operation	Three working modes: Pan Mode, Follow Mode, and Lock Mode. Power Button(on the side） long press: on/ off Single tap: enter/quit shortcut menu (This function need to operate on APP. Users can set pan mode, follow mode and all follow mode) Double tap: switch photo/video (operate on APP) Function Button(on the front) < Single tap: switch among common working modes (Users can enter the shortcut menu on the APP to customize the working modes switched. ) Double tap: Switch between landscape/ portrait mode Triple tap: Enter standby mode/ wake up Five tap: Initialize the gimbal ( be used for adjusting oblique working status or abnormal working status to reacquire the correct pose data ) Photo Button(on the front) Single tap: take photos (need to connect with Bluetooth) Long press: Continuous shooting( need to connect with Bluetooth) Video Button(on the front) single tap: Start/stop shooting(need to connect with Bluetooth) Joystick(on the front) control the Gimbal rotation(normal working status) Set options(on set-up page of shortcut menu on APP) Trigger Button(on the back) Press and hold：Lock Mode（release it to quit） Double tap: Recenter Triple tap：switch front and rear camera（need to connect with Bluetooth） Single tap first and then press and hold:Follow Mode（release it to quit） Focus Button(on the side） Slide up/down to zoom in/out. Slide to T direction to zoom in. Slide to W direction to zoom out.
  Clearing Bluetooth Info	Move the Joystick upward at the same time double-tap the Power Button to clear Bluetooth pairing info. Restart the Gimbal so that the Bluetooth can be connected again.
  Exhibition Mode	Move the Focus Button down at the same time five-tap the Trigger Button to enter Exhibition Mode. Double-tap the Trigger button to quit.
  Operational Function for Users	The Gimbal can quickly switch landscape and portrait mode, which is suitable for live streaming and shooting for Tiktok. The Gimbal can be quickly folded and unfolded. It is portable and convenient that the three-axis motors can be physically locked. The Gimbal can directly control photo/video of the original camera and BeautyCam APP. Users can manually lock the tilting angle to fit any shooting angle needs. Connected with Feiyu ON APP can fulfill AI tracking, Countdown Photo, Gesture Control, Time-lapse, Panorama, Overlapping Images, Light-tracking, BeautyCam/filter, Video Edit, Virtual Joystick, Firmware update, setting corresponding parameters, switching working modes, and other functions. There are kinds of working modes, for example, 360° All Follow Mode or Inception Mode to increase playability. Users can initialize the gimbal to adjust the oblique working status or abnormal working status to reacquire the correct pose data.
